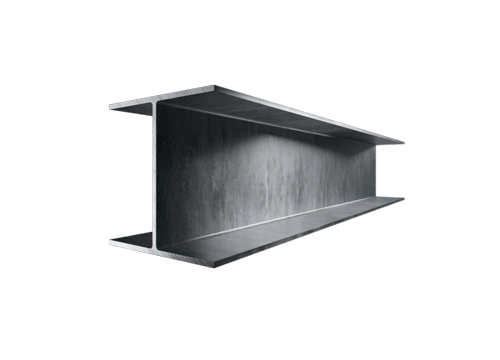

Universal Steel Beam

Images

VIEW ALL

GET A FREE QUOTE

Call us

0208 947 4722

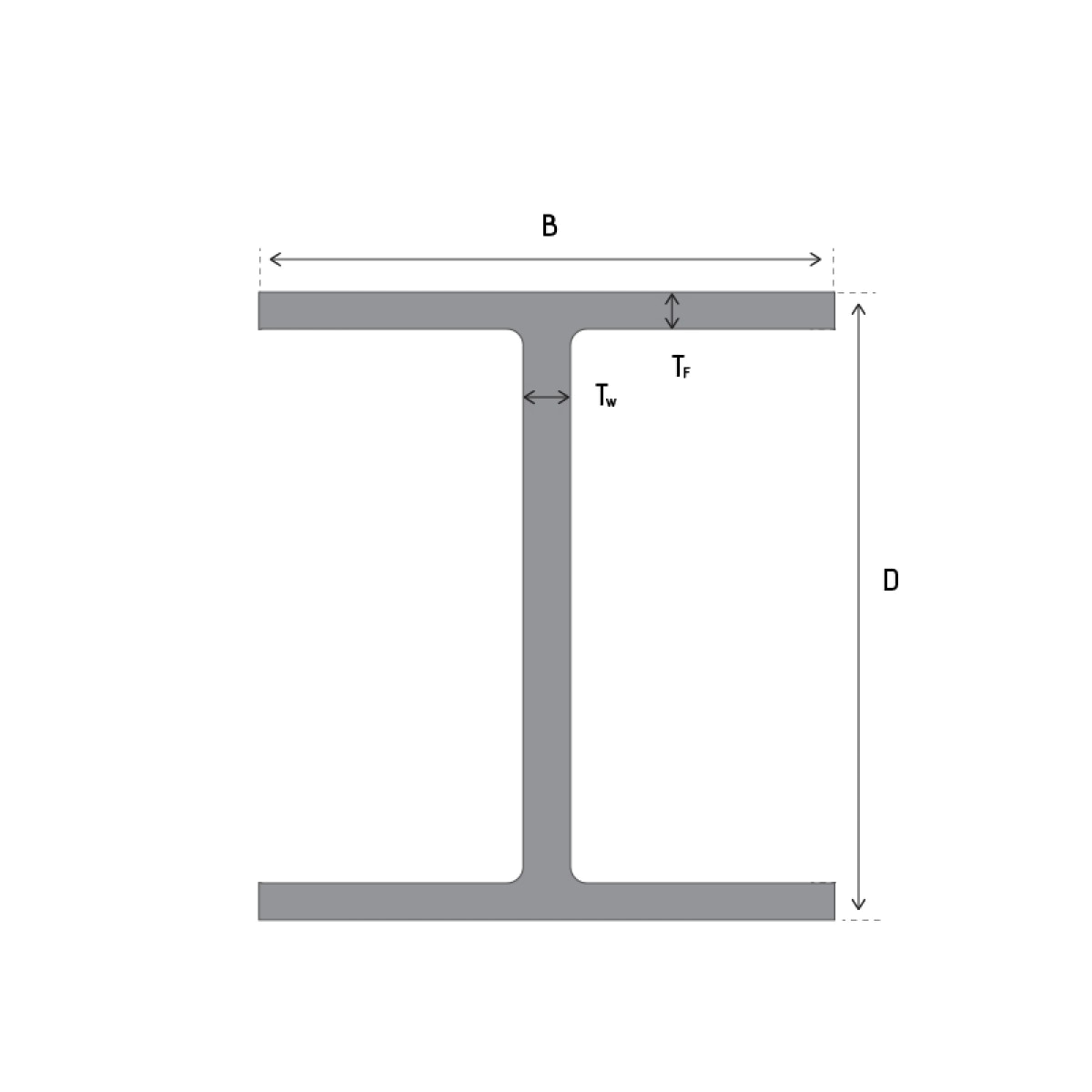

Designation	Mass per metre (kg/m)	Depth of Section h (mm)	Width of Section b (mm)	Thickness Web s (mm)	Thickness Flange t (mm)
127 x 76	13.0	127.0	76.0	4.0	7.6
152 x 89	16.0	152.4	88.7	4.5	7.7
178 x 102	19.0	177.8	101.2	4.8	7.9
203 x 102	23.1	203.2	101.8	5.4	9.3
203 x 133	25.1	203.2	133.2	5.7	7.8
203 x 133	30.0	206.8	133.9	6.4	9.6
254 x 102	22.0	254.0	101.6	5.7	6.8
254 x 102	25.2	257.2	101.9	6.0	8.4
254 x 102	28.3	260.4	102.2	6.3	10.0
254 x 146	31.1	251.4	146.1	6.0	8.6
254 x 146	37.0	256.0	146.4	6.3	10.9
254 x 146	43.0	259.6	147.3	7.2	12.7
305 x 102	24.8	305.1	101.6	5.8	7.0
305 x 102	28.2	308.7	101.8	6.0	8.8
305 x 102	32.8	312.7	102.4	6.6	10.8
305 x 127	37.0	304.4	123.3	7.1	10.7
305 x 127	41.9	307.2	124.3	8.0	12.1
305 x 127	48.1	311.0	125.3	9.0	14.0
305 x 165	40.3	303.4	165.0	6.0	10.2
305 x 165	46.1	306.6	165.7	6.7	11.8
305 x 165	54.0	310.4	166.9	7.9	13.7
356 x 127	33.1	349.0	125.4	6.0	8.5
356 x 127	39.1	353.4	126.0	6.6	10.7
356 x 171	45.0	351.4	171.1	7.0	9.7
356 x 171	51.0	355.0	171.5	7.4	11.5
356 x 171	57.0	358.0	172.2	8.1	13.0
356 x 171	67.1	363.4	173.2	9.1	15.7
406 x 140	39.0	398.0	141.8	6.4	8.6
406 x 140	46.0	403.2	142.2	6.8	11.2
406 x 178	54.1	402.6	177.7	7.7	10.9
406 x 178	60.1	406.4	177.9	7.9	12.8
406 x 178	67.1	409.4	178.8	8.8	14.3
406 x 178	74.2	412.8	179.5	9.5	16.0
457 x 152	52.3	449.8	152.4	7.6	10.9
457 x 152	59.8	454.6	152.9	8.1	13.3
457 x 152	67.2	458.0	153.8	9.0	15.0
457 x 152	74.2	462.0	154.4	9.6	17.0
457 x 152	82.1	465.8	155.3	10.5	18.9
254 x 102	25.2	257.2	101.9	6.0	8.4
203 x 133	30.0	206.8	133.9	6.4	9.6
203 x 133	30.0	206.8	133.9	6.4	9.6
457 x 191	67.1	453.4	189.9	8.5	12.7
457 x 191	74.3	457.0	190.4	9.0	14.5
457 x 191	82.0	460.0	191.3	9.9	16.0
457 x 191	89.3	463.4	191.9	10.5	17.7
457 x 191	98.3	467.2	192.8	11.4	19.6
533 x 210	82.2	528.3	208.8	9.6	13.2
533 x 201	92.1	533.1	209.3	10.1	15.6
533 x 210	101.0	536.7	210.0	10.8	17.4
533 x 210	109.0	539.5	210.8	11.6	18.8
533 x 210	122.0	544.5	211.9	12.7	21.3
610 x 229	101.2	602.6	227.6	10.5	14.8
610 X 229	113.0	607.6	228.2	11.1	17.3
610 x 229	125.1	612.2	229.0	11.9	19.6
610 x 229	139.9	617.2	230.2	13.1	22.1
610 x 305	149.1	612.4	304.8	11.8	19.7
610 x 305	179.0	620.2	307.1	14.1	23.6
610 x 305	238.1	635.8	311.4	18.4	31.4
686 x 254	125.2	677.9	253.0	11.7	16.2
686 x 254	140.1	683.5	253.7	12.4	19.0
686 x 254	152.4	687.5	254.5	13.2	21.0
686 x 254	170.2	692.9	255.8	14.5	23.7
762 x 267	133.9	750.0	264.4	12.0	15.5
762 x 267	146.9	754.0	265.2	12.8	17.5
762 x 267	173.0	762.2	266.7	14.3	21.6
762 x 267	196.8	769.8	268.0	15.6	25.4
838 X 292	175.9	834.9	291.7	14.0	18.8
838 X 292	193.8	840.7	292.4	14.7	21.7
838 X 292	226.5	850.9	293.8	16.1	26.8
914 x 305	200.9	903.0	303.0	15.1	20.2
914 x 305	224.2	910.4	304.1	15.9	23.9
914 x 305	253.4	918.4	305.5	17.3	27.9
914 x 305	289.1	926.6	307.7	19.5	32.0
914 x 419	343.3	911.8	418.5	19.4	32.0
914 x 419	388.0	921.0	420.5	21.4	36.6
203 x 133	30.0	206.8	133.9	6.4	9.6
