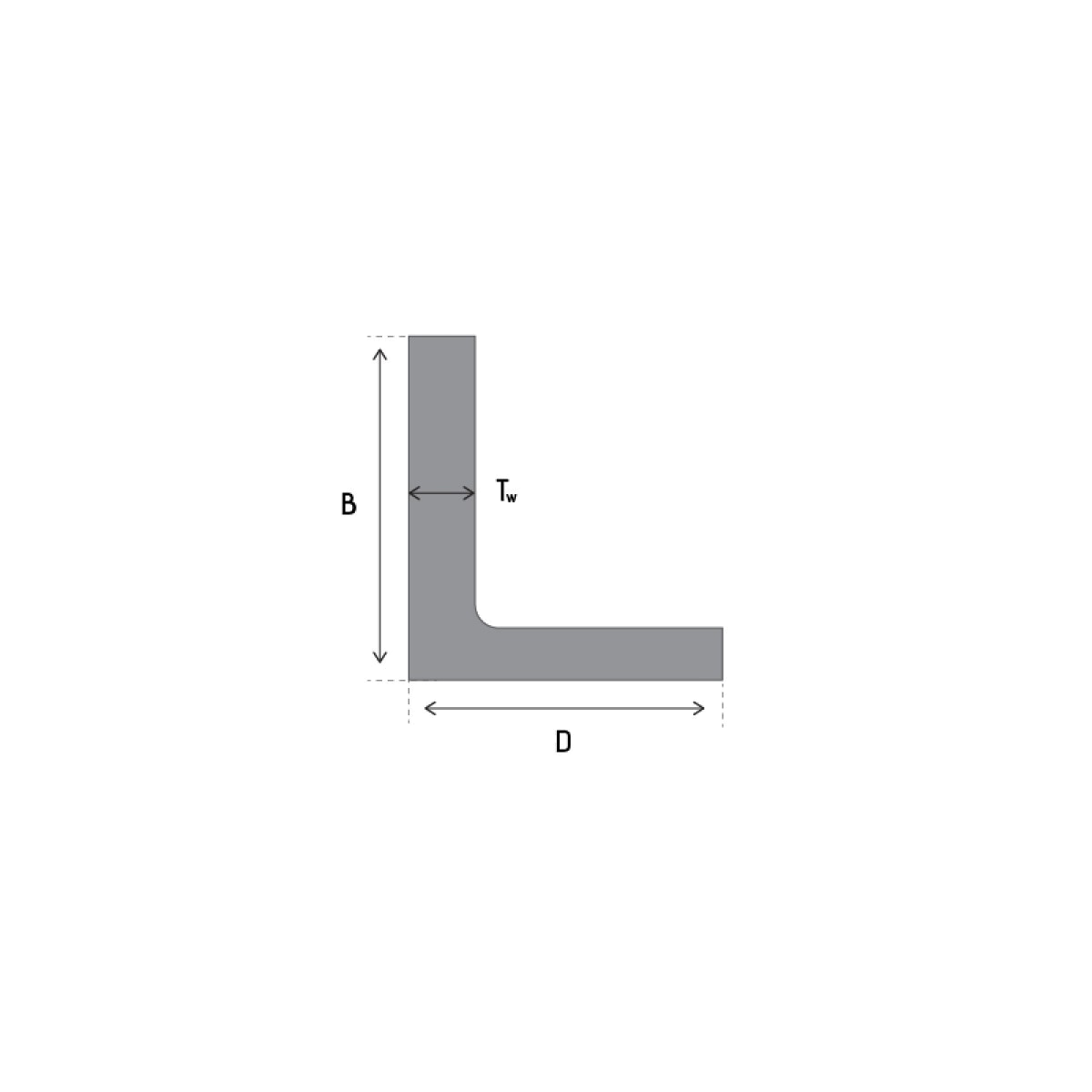

Rolled Steel Angle

Images

Call us

0208 947 4722

Equal

Size A (mm)	Thickness t (mm)	Mass per metre (kg)	Area of section (cm²)
200 x 200	24	71.1	90.6
200 x 200	20	59.9	76.3
200 x 200	18	54.2	69.1
200 x 200	16	48.5	61.8
150 x 150	18	40.1	51.0
150 x 150	15	33.8	43.0
150 x 150	12	27.3	34.8
150 x 150	10.0	23.0	29.3
120 x 120	15	26.6	33.9
120 x 120	12	21.6	27.5
120 x 120	10	18.2	23.2
120 x 120	8	14.7	18.7
100 x 100	15	21.9	27.9
100 x 100	12	17.8	22.7
100 x 100	10	15.0	19.2
100 x 100	8	12.2	15.5
90 x 90	12	15.9	20.3
90 x 90	10	13.4	17.1
90 x 90	8	10.9	13.9
90 x 90	6	8.3	10.6
80 x 80	10	11.9	15.1
80 x 80	8	9.63	12.3
80 x 80	6	7.34	9.25
70 x 70	10	10.3	13.1
70 x 70	8	8.36	10.6
70 x 70	6	6.38	8.13
60 x 60	10	8.69	11.1
60 x 60	8	7.09	9.03
60 x 60	6	5.42	6.91
60 x 60	5	4.57	5.82
50 x 50	8	5.82	7.41
50 x 50	6	4.47	5.69
50 x 50	5	3.77	4.8
40 x 40	6	3.52	4.48
40 x 40	5	2.97	3.79
40 x 40	4	2.42	3.08

Unequal

Size A (mm)	Thickness t (mm)	Mass per metre (kg)	Area of section (cm²)
200 x 150	18	47.1	60.0
200 x 150	15	39.6	50.5
200 x 150	12	32.0	40.8
200 x 100	15	33.7	43.0
200 x 100	12	27.3	34.8
200 x 100	10	23.0	29.2
150 x 90	15	26.6	33.9
150 x 90	12	21.6	27.5
150 x 90	10	18.2	23.2
150 x 75	15	24.8	31.6
150 x 75	12	20.2	25.7
150 x 75	10	17.0	21.6
125 x 75	12	17.8	22.7
125 x 75	10	15.0	19.1
125 x 75	8	12.2	15.5
100 x 75	12	15.4	19.7
100 x 75	10	13.0	16.6
100 x 75	8	10.6	13.5
100 x 65	10	12.3	15.6
100 x 65	8	9.94	12.7
100 x 65	7	8.77	11.2
80 x 60	8	8.34	10.6
80 x 60	7	7.36	9.38
80 x 60	6	6.37	8.11
75 x 50	8	7.39	9.41
75 x 50	6	5.65	7.19
65 x 50	8	6.75	8.6
65 x 50	6	5.16	6.58
65 x 50	5	4.35	5.54
