0208 947 4722Dimensions and types

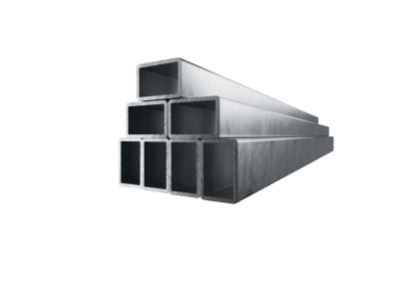

Hot Finished Celsius® 275

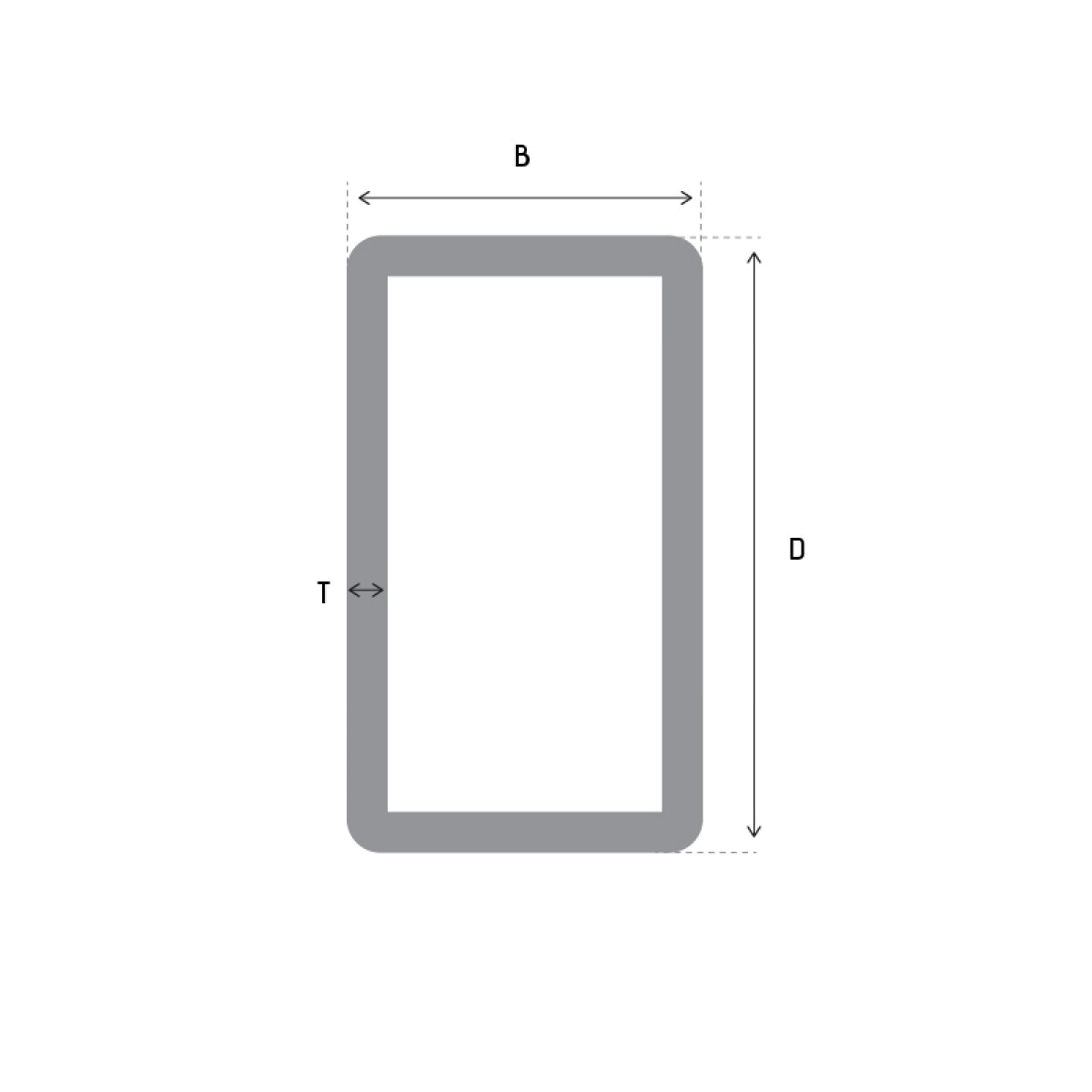

| Size D x D (mm) | Thickness t (mm) | Mass per metre (kg) | Area of section (cm²) |
|---|---|---|---|
| 50 x 30 | 3.2 | 3.61 | 4.6 |
| 60 x 40 | 3.0 | 4.35 | 5.54 |
| 60 x 40 | 4.0 | 5.64 | 7.19 |
| 60 x 40 | 5.0 | 6.85 | 8.73 |
| 80 x 40 | 3.2 | 5.62 | 7.16 |
| 80 x 40 | 4.0 | 6.9 | 8.79 |
| 80 x 40 | 5.0 | 8.42 | 10.7 |
| 80 x 40 | 6.3 | 10.3 | 13.1 |
| 80 x 40 | 8.0 | 12.5 | 16.0 |
| 90 x 50 | 3.6 | 7.4 | 9.42 |
| 90 x 50 | 5.0 | 9.99 | 12.7 |
| 90 x 50 | 6.3 | 12.3 | 15.6 |
| 100 x 50 | 3.0 | 6.71 | 8.54 |
| 100 x 50 | 3.2 | 7.13 | 9.08 |
| 100 x 50 | 4.0 | 8.78 | 11.2 |
| 100 x 50 | 5.0 | 10.8 | 13.7 |
| 100 x 50 | 6.3 | 13.3 | 16.9 |
| 100 x 50 | 8.0 | 16.3 | 20.8 |
| 100 x 60 | 3.6 | 8.53 | 10.9 |
| 100 x 60 | 5.0 | 11.6 | 14.7 |
| 100 x 60 | 6.3 | 14.2 | 18.1 |
| 100 x 60 | 8.0 | 17.5 | 22.4 |
| 120 x 60 | 3.6 | 9.66 | 12.3 |
| 120 x 60 | 5.0 | 13.1 | 16.7 |
| 120 x 60 | 6.3 | 16.2 | 20.7 |
| 120 x 60 | 8.0 | 20.1 | 25.6 |
| 120 x 80 | 5.0 | 14.7 | 18.7 |
| 120 x 80 | 6.3 | 18.2 | 23.2 |
| 120 x 80 | 8.0 | 22.6 | 28.8 |
| 120 x 80 | 10.0 | 27.4 | 34.9 |
| 150 x 100 | 5.0 | 18.6 | 23.7 |
| 150 x 100 | 6.3 | 23.1 | 29.5 |
| 150 x 100 | 8.0 | 28.9 | 36.8 |
| 150 x 100 | 10.0 | 35.3 | 44.9 |
| 150 x 100 | 12.5 | 42.8 | 54.6 |
| 160 x 80 | 4.0 | 14.4 | 18.4 |
| 160 x 80 | 5.0 | 17.8 | 22.7 |
| 160 x 80 | 6.3 | 22.2 | 28.2 |
| 160 x 80 | 8.0 | 27.6 | 35.2 |
| 160 x 80 | 10.0 | 33.7 | 42.9 |
| 200 x 100 | 5.0 | 22.6 | 28.7 |
| 200 x 100 | 6.3 | 28.1 | 35.8 |
| 200 x 100 | 8.0 | 35.1 | 44.8 |
| 200 x 100 | 10.0 | 43.1 | 54.9 |
| 200 x 100 | 12.5 | 52.7 | 67.1 |
| 200 x 120 | 5.0 | 24.1 | 30.7 |
| 200 x 120 | 6.3 | 30.1 | 38.3 |
| 200 x 120 | 8.0 | 37.6 | 48.0 |
| 200 x 120 | 10.0 | 46.3 | 58.9 |
| 200 x 150 | 8.0 | 41.4 | 52.8 |
| 200 x 150 | 10.0 | 51.0 | 64.9 |
| 250 x 100 | 10.0 | 51.0 | 64.9 |
| 250 x 100 | 12.5 | 62.5 | 79.6 |
| 250 x 150 | 5.0 | 30.4 | 38.7 |
| 250 x 150 | 6.3 | 38.0 | 48.4 |
| 250 x 150 | 8.0 | 47.7 | 60.8 |
| 250 x 150 | 10.0 | 58.8 | 74.9 |
| 250 x 150 | 12.5 | 72.3 | 92.1 |
| 250 x 150 | 16.0 | 90.3 | 115.0 |
| 300 x 100 | 8.0 | 47.7 | 60.8 |
| 300 x 100 | 10.0 | 58.8 | 74.9 |
| 300 x 200 | 6.3 | 47.9 | 61.0 |
| 300 x 200 | 8.0 | 60.3 | 76.3 |
| 300 x 200 | 10.0 | 74.5 | 94.9 |
| 300 x 200 | 12.5 | 91.9 | 117.0 |
| 300 x 200 | 16.0 | 115.0 | 147.0 |
| 400 x 200 | 8.0 | 72.8 | 92.8 |
| 400 x 200 | 10.0 | 90.2 | 115.0 |
| 400 x 200 | 12.5 | 112.0 | 142.0 |
| 400 x 200 | 16.0 | 141.0 | 179.0 |
| 450 x 250 | 8.0 | 85.4 | 109.0 |
| 450 x 250 | 10.0 | 106.0 | 135.0 |
| 450 x 250 | 12.5 | 131.0 | 167.0 |
| 450 x 250 | 16.0 | 166.0 | 211.0 |
| 500 x 300 | 8.0 | 97.9 | 125.0 |
| 500 x 300 | 10.0 | 122.0 | 155.0 |
| 500 x 300 | 12.5 | 151.0 | 192.0 |
| 500 x 300 | 16.0 | 191.0 | 243.0 |
| 500 x 300 | 20.0 | 235.0 | 300.0 |
