0208 947 4722Dimensions and types

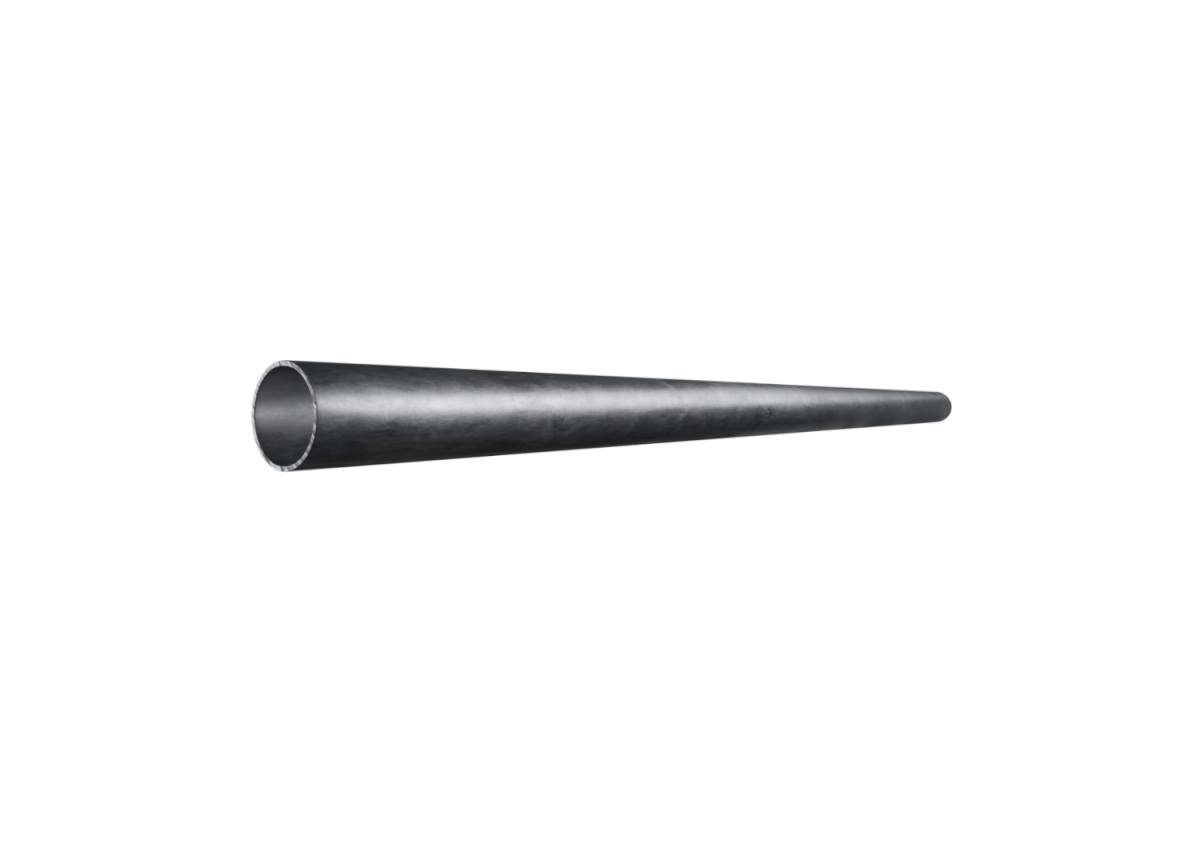

Hot Finished Celsius® 275
| Outside diameter D (mm) | Thickness t (mm) | Mass per metre (kg) | Area of Section (cm²) |
|---|---|---|---|
| 21.3 | 3.2 | 1.43 | 1.82 |
| 26.9 | 3.2 | 1.87 | 2.38 |
| 33.7 | 2.6 | 1.99 | 2.54 |
| 33.7 | 3.2 | 2.41 | 3.07 |
| 33.7 | 4.0 | 2.93 | 3.73 |
| 42.2 | 2.6 | 2.55 | 3.25 |
| 42.2 | 3.2 | 3.09 | 3.94 |
| 42.2 | 4.0 | 3.79 | 4.83 |
| 48.3 | 3.2 | 3.56 | 4.53 |
| 48.3 | 4.0 | 4.37 | 5.57 |
| 48.3 | 5.0 | 5.34 | 6.80 |
| 60.3 | 3.2 | 4.51 | 5.74 |
| 60.3 | 4.0 | 5.55 | 7.07 |
| 60.3 | 5.0 | 6.82 | 8.69 |
| 76.1 | 3.2 | 5.75 | 7.33 |
| 76.1 | 4.0 | 7.11 | 9.06 |
| 76.1 | 5.0 | 8.77 | 11.20 |
| 88.9 | 3.2 | 6.76 | 8.62 |
| 88.9 | 4.0 | 8.38 | 10.70 |
| 88.9 | 5.0 | 10.30 | 13.20 |
| 114.3 | 3.6 | 9.83 | 12.50 |
| 114.3 | 5.0 | 13.50 | 17.20 |
| 114.3 | 6.3 | 16.8 | 21.40 |
| 139.7 | 5.0 | 16.6 | 21.2 |
| 139.7 | 6.3 | 20.7 | 26.4 |
| 139.7 | 8.0 | 26.0 | 33.1 |
| 139.7 | 10.0 | 32.0 | 40.7 |
| 168.3 | 5.0 | 20.1 | 25.7 |
| 168.3 | 6.3 | 25.2 | 32.1 |
| 168.3 | 8.0 | 31.6 | 40.3 |
| 168.3 | 10.0 | 39.0 | 49.7 |
| 193.7 | 5.4 | 25.1 | 31.9 |
| 193.7 | 6.3 | 29.1 | 37.1 |
| 193.7 | 8.0 | 36.6 | 46.7 |
| 193.7 | 10.0 | 45.3 | 57.7 |
| 193.7 | 12.5 | 55.9 | 71.2 |
| 193.7 | 16.0 | 70.1 | 89.3 |
| 219.1 | 6.3 | 33.1 | 42.1 |
| 219.1 | 8.0 | 41.6 | 53.1 |
| 219.1 | 10.0 | 51.6 | 65.7 |
| 219.1 | 12.5 | 63.7 | 81.1 |
| 219.1 | 16.0 | 80.1 | 102.0 |
| 219.1 | 20.0 | 98.2 | 125.0 |
| 244.5 | 6.3 | 37.0 | 47.1 |
| 244.5 | 8.0 | 46.7 | 59.4 |
| 244.5 | 10.0 | 57.8 | 73.7 |
| 244.5 | 12.5 | 71.5 | 91.1 |
| 244.5 | 16.0 | 90.2 | 115.0 |
| 244.5 | 20.0 | 111.0 | 151.0 |
| 273.0 | 6.3 | 41.4 | 52.8 |
| 273.0 | 8.0 | 52.3 | 66.6 |
| 273.0 | 10.0 | 64.9 | 82.6 |
| 273.0 | 12.5 | 80.3 | 102.0 |
| 273.0 | 16.0 | 101.0 | 129.0 |
| 273.0 | 20.0 | 125.0 | 159.0 |
| 273.0 | 25.0 | 153.0 | 195.0 |
| 323.9 | 8.0 | 62.3 | 79.4 |
| 323.9 | 10.0 | 77.4 | 98.6 |
| 323.9 | 12.5 | 96.0 | 122.0 |
| 323.9 | 16.0 | 121.0 | 155.0 |
| 323.9 | 20.0 | 150.0 | 191.0 |
| 323.9 | 25.0 | 184.0 | 235.0 |
| 355.6 | 8.0 | 68.6 | 87.4 |
| 355.6 | 10.0 | 85.2 | 109.0 |
| 355.6 | 12.5 | 106.0 | 135.0 |
| 355.6 | 16.0 | 134.0 | 171.0 |
| 355.6 | 20.0 | 166.0 | 211.0 |
| 355.6 | 25.0 | 204.0 | 260.0 |
| 406.4 | 10.0 | 97.8 | 125.0 |
| 406.4 | 12.5 | 121.0 | 155.0 |
| 406.4 | 16.0 | 154.0 | 196 |
| 406.4 | 20.0 | 191.0 | 243.0 |
| 406.4 | 25.0 | 235.0 | 300.0 |
| 406.4 | 32.0 | 295.0 | 376.0 |
| 457.0 | 10.0 | 110.0 | 140.0 |
| 457.0 | 12.5 | 137.0 | 175.0 |
| 457.0 | 16.0 | 174.0 | 222.0 |
| 457.0 | 20.0 | 216.0 | 275.0 |
| 457.0 | 25.0 | 266.0 | 339.0 |
| 457.0 | 32.0 | 355.0 | 427.0 |
| 457.0 | 40.0 | 411.0 | 524.0 |
